Tripp Lite SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS Item # 929340

 |

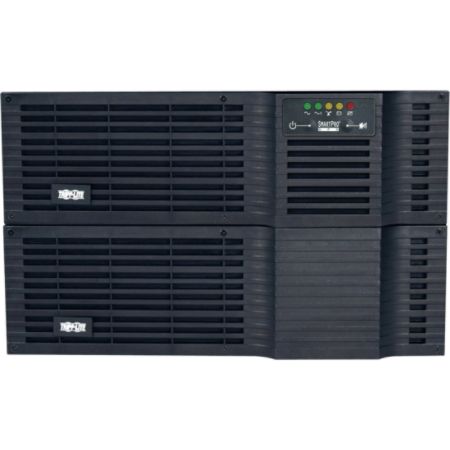

Tripp Lite SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS
$ 2759 .99 / each $2759.99
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. In rack configuration, the power module and battery pack occupy only 3 rack spaces (3U) each. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads.True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Battery support can be extended indefinitely with additional external 3U rackmount battery packs. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data.

    Back To Top

    Product Details

    Item # 929340
    OfficeMax # 22459475
    Manufacturer # 252847
    Load Capacity (Watt) 4000 W
    Backup/Run Time (Full Load) 16 Minute
    Maximum Battery Recharge Time 4 Hour
    Switching Time 4 ms
    Status Indicators 5 front panel LEDs - Green 5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LED, red BATTERY WARNING LED
    Temperature 104°F (40°C)
    Battery Life 6 Year
    height 10.5 in
    Additional Information Large 5000VA / 4000 watt output capacity with full time sine wave output offers guaranteed compatibility with all equipment types; High power density 5kVA power module and battery pack occupy only 3 rack spaces (3U) each (UPS and battery pack use 6U when installed); 38 minutes half load runtime, expandable runtime with multiple external battery packs (part# BP48V60RT3U); Line interactive voltage regulation corrects severe brownouts and overvoltages without using battery power
    Certifications & Standards UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
    Output Voltage 208 V AC
    battery type Sealed Lead Acid
    width 35 in
    Product Line SmartPro
    package contents SMART5000RT3U UPS; SMART5000RT3U UPS System; BP48V60RT3U Battery Pack; PowerAlert Software and Cabling; Mounting Hardware; Instruction Manual with Warranty Information
    depth 45.3 in
    Product Name SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS
    Network Management SNMP Manageable
    Rack Height 6U
    manufacturer Tripp Lite
    Plug/Connector Type NEMA L6-30P
    Waveform Type Sine Wave
    weight 58.50 lb
    brand name Tripp Lite
    Emergency Power OFF Yes
    USB Yes
    Input Connectors 1 x power NEMA L6-30
    Frequency Provided 60 Hz
    Input Voltage 220 V AC
    length 10 ft.
    Backup/Run Time (Half Load) 38 Minute
    Load Capacity (VA) 5000 VA
    Total Number of Expansion Slots 1
    Alarm On Battery; Overload; Low Battery
    Receptacles 2 x NEMA 5-20R; 1 x NEMA L14-30R; 10 x NEMA 5-15R; 1 x NEMA L6-30R
    warranty length 2-year limited
    model name SMART5000RT3U
    hot swappable Yes
